An introduction to E2E testing with detox for react native

To build a usable software product that will thrive in the marketplace, it’s essential to perform end-to-end (E2E) testing on your mobile app. Simulating user behavior during E2E testing before deploying to production is crucial to satisfying end users. This is to say that with proper testing in place, you can avoid defects and flakiness users experience in mobile apps. One tool for performing E2E tests in mobile apps is Detox, a test automation framework that’s especially useful for apps built with React Native.

In this post, we’ll examine the Detox test framework in detail and how to use it when testing your React Native mobile app. This guide also takes you through an example of how to set up and execute tests with Detox step by step. But first, let’s review the link between Detox and mobile testing, and what the existence of Detox means for testing in React Native.

What Is Detox in Mobile Testing?

As demand for modern mobile apps continues to rise, developers should ensure apps work as expected regardless of the timeline. In other words, deploying mobile apps with great user experience is of utmost importance to try and get on the board of top-ranking apps.

For example, suppose you’re testing an e-commerce app, and it’s required to have the users to fill in the correct information when entering the details for the shipping address. As a developer or tester, you’ll want to cover each case related to interacting with the form fields, detect flakiness, and ascertain that users can submit when the flow is complete. Considering the requirements for these test cases, one tool that shines well in getting the task done is the Detox test framework.

Detox is an automated E2E testing framework that was created by Wix. What Detox does is often referred to as a gray box E2E testing.

Interaction between components while performing an E2E test reveals the obstructive behaviors potential users could likely experience. Hence, the need for mobile testing is an integral part of the software development life cycle in order to identify malfunctioning components and errors that exist in the app. With this in mind, the Detox test framework provides a solid foundation for writing and implementing test cases for React Native apps.

As one of the most powerful testing tools out there, Detox does best when automating tasks for visualizing the behavior of a mobile app. Detox test suites can be written for multi-platform apps from a single codebase to be tested using an emulator (Android devices) or simulator (iOS devices). Additionally, you can perform an E2E test in Detox to validate the functionalities and connections that exist between the different parts of the app.

What Is Detox in React Native?

As mentioned above, the Wix mobile development team created Detox while solving the challenge of automated E2E tests for their mobile apps built with React Native. A cross-platform test engine, Detox turned out to be one of the most sophisticated tools in the mobile development ecosystem. It can be used to perform automated tests on both iOS and Android apps built with React Native.

Detox has many benefits when testing React Native apps. Here are just a few:

• Detox works with any test runner, including Mocha, Jest, and Cucumber.
• It has a wide range of support and a buzzing developer ecosystem.
• When compared to its counterparts, Detox is easy to set up.
• Detox is a cross-platform tool that can run on multiple devices for both iOS and Android.
• You can imitate actions and clicks visually in the app from a user’s point of view.
• It provides tons of APIs for enabling triggers and action in your test suites.
• The E2E tests you write in Detox can also be executed on a continuous integration platform.

With Detox, you can access, select and trigger actions on elements within the app. This is similar to users interacting with the mobile app.

So, now that you know more about the Detox test framework, let’s see it in action.

Create the Demo Application

We need to start by creating a React Native project. Create a new React Native app using the following command:

npx react-native init rnDetoxApp

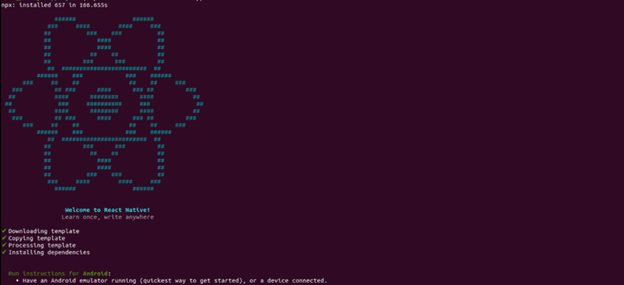

Your terminal will display the following screen after successful installation:

The next step is to build and launch the app in an emulator. From the terminal, navigate to the project folder cd rnDetoxApp.

Afterward, start the app using this command:

yarn start

Next, run the following command to build the app:

npx react-native run-android

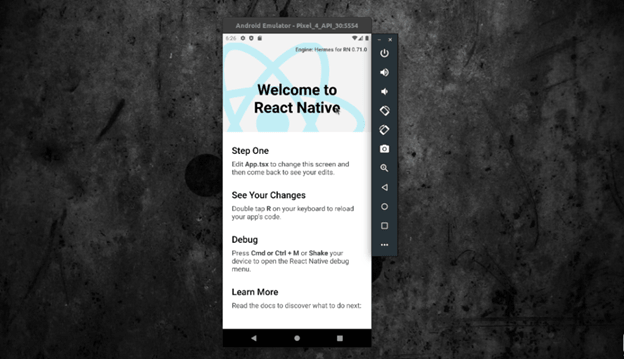

This is the screen that should appear when the command above runs successfully:

Configure Detox in React Native

Now that our React Native app is set up, we need to configure Detox. Note that the configuration targets Android devices.

The first step is to install a couple of packages locally and globally on your system:

• Install the detox-cli with the command yarn global add detox-cli.
• Install the test runner in the rnDetoxApp, yarn add “jest@^29” –dev.
• Also, add Detox as a dev dependency to your project with the command yarn add detox –dev.

Initialize Detox

Initialize the Detox test framework in your project using the command npx detox init:

npx detox init

Created a file at path: .detoxrc.js
Created a file at path: e2e/jest.config.js
Created a file at path: e2e/starter.test.js

In the .detoxrc.js file, you'll have to set the value for your avdName:

 devices: {
    //... code omitted for brevity
    },
    emulator: {
      type: 'android.emulator',
      device: {
        avdName: 'Pixel_4_API_30'
      }
    }
  },

In the code above, Pixel_4_API_30 is the value for avdName. This instructs the Detox engine which type of Android device to use.

Add Native Configurations

In this step, you’ll be adding native dependencies as required by Detox.

Notably, in your project, you’ll observe an android folder. In the android folder, there’s a build.gradle file. Update the file with these changes.

First, in the ext option, add the kotlinVersion:

buildScript {

      ext {

       //...code omitted for brevity

       kotlinVersion = '1.7.20' // (1) add kotlinVersion

   }

//...code omitted for brevity

}



Second, update the repositories option found in the buildScript:

buildScript {
      //... code omitted for brevity
      repositories {
         google()
         mavenCentral()
         maven { url("$rootDir/../node_modules/detox/Detox-android") // add this dependency from detox
 }
   //... code omitted for brevity
}

}



Third, in the dependencies option add the following:

buildScript {
   dependencies {

      classpath("org.jetbrains.kotlin:kotlin-gradle-plugin:$kotlinVersion") // add this dependency here
      //...code omitted for brevity
      }
}



Now, inside build.gradle paste the allrespositories options below the buildScript options:

// make sure to add this to the file
allprojects{
       repositories {
       google()
       mavenCentral()
       maven {
          url("$rootDir/../node_modules/detox/Detox-android")
           }
       }
}



Afterward, in the android/app/build.gradle file, add these changes.

For the defaultConfig properties, add this code:

defaultConfig {
        //...code omitted for brevity
        testBuildType System.getProperty('testBuildType', 'debug')
        testInstrumentationRunner 'androidx.test.runner.AndroidJUnitRunner'
    }



Still in the android/app/build.gradle, update the release option:

buildTypes {
        //... code omitted for brevity
        release {
            //...code omitted
            proguardFiles getDefaultProguardFile("proguard-android.txt"), "proguard-rules.pro"
            proguardFile "${rootProject.projectDir}/../node_modules/detox/android/detox/proguard-rules-app.pro"
        }
    }



Also, while in the android/app/build.gradle, add this value to the dependencies field:

dependencies {
    androidTestImplementation('com.wix:detox:+')
    implementation 'androidx.appcompat:appcompat:1.1.0'
    //...code omitted for brevity
}



After that, create the file android/app/src/androidTest/java/com/rndetoxapp/DetoxTest.java.

Inside the DetoxText.java file, paste the code below:

package com.rndetoxapp;

import com.wix.detox.Detox;
import com.wix.detox.config.DetoxConfig;

import org.junit.Rule;
import org.junit.Test;
import org.junit.runner.RunWith;

import androidx.test.ext.junit.runners.AndroidJUnit4;
import androidx.test.filters.LargeTest;
import androidx.test.rule.ActivityTestRule;

@RunWith(AndroidJUnit4.class)
@LargeTest
public class DetoxTest {
    @Rule
    public ActivityTestRule<MainActivity> mActivityRule = new ActivityTestRule<>(MainActivity.class, false, false);

    @Test
    public void runDetoxTests() {
        DetoxConfig detoxConfig = new DetoxConfig();
        detoxConfig.idlePolicyConfig.masterTimeoutSec = 90;
        detoxConfig.idlePolicyConfig.idleResourceTimeoutSec = 60;
        detoxConfig.rnContextLoadTimeoutSec = (BuildConfig.DEBUG ? 180 : 60);

        Detox.runTests(mActivityRule, detoxConfig);
    }
}



The next thing is to create android/app/src/main/res/xml/network_security_config.xml file. Inside the network_security_config.xml file, paste the following code:

<?xml version="1.0" encoding="utf-8"?>
<network-security-config>
    <domain-config cleartextTrafficPermitted="true">
        <domain includeSubdomains="true">10.0.2.2</domain>
        <domain includeSubdomains="true">localhost</domain>
    </domain-config>
</network-security-config>

Afterward, you'll have to link the network_security_config.xml file inside the android/app/src/main/AndroidManifest.xml. So, in your main AndroidManifest.xml, which already exists in your project, update this line of code:

<manifest>
   <application
   ...code omitted
   android:networkSecurityConfig="@xml/network_security_config">
   </application>
 </manifest>



Add Functionalities to the Application

Before building the app, in your App.js file, update the code with this:

import React, { useState } from 'react';
import {
  View,
  StyleSheet,
  Text,
  StatusBar,
  TextInput,
  Pressable,
  ScrollView,
} from 'react-native';

const App = () => {
  const [phone, setPhone] = useState('Phone');
  const [shippingAddrOne, setShippingAddrOne] = useState('Shipping Address 1');
  const [shippingAddrTwo, setShippingAddrTwo] = useState('Shipping Address 2');
  const [city, setCity] = useState('City');
  const [zipCode, setZipCode] = useState("Zip Code");
  const [isSubmitted, setIsSubmitted] = useState(false);

  const onSubmit = () => {
    setIsSubmitted(true);
  };

  return (
    <ScrollView style={styles.container} testID='scrollView'>
      <StatusBar barStyle="dark-content" />
      <View style={styles.header}>
        <Text testID="pageTitle" style={styles.pageTitle}>
          Shipping Address
        </Text>
      </View>

      <View style={styles.content}>
        <TextInput
          testID={'phone'}
          style={styles.input}
          onChangeText={setPhone}
          value={phone}
        />
      </View>

      <View style={styles.content}>
        <TextInput
          testID={'shippingAddrOne'}
          style={styles.input}
          onChangeText={setShippingAddrOne}
          value={shippingAddrOne}
        />
      </View>

      <View style={styles.content}>
        <TextInput
          testID={'shippingAddrTwo'}
          style={styles.input}
          onChangeText={setShippingAddrTwo}
          value={shippingAddrTwo}
        />
      </View>

      <View style={styles.content}>
        <TextInput
          testID={'city'}
          style={styles.input}
          onChangeText={setCity}
          value={city}
        />
      </View>


      <View style={styles.content}>
        <TextInput
          testID={'zipCode'}
          style={styles.input}
          onChangeText={setZipCode}
          value={zipCode}
        />
      </View>

      {isSubmitted && (
        <View style={styles.message}>
          <Text>isSubmitted Successfully</Text>
        </View>
      )}

      <View style={styles.btnContainer}>
        <Pressable
          onPress={onSubmit}
          style={styles.pressable}
          testID={'submitButton'}>
          <View style={styles.btnTextWrapper}>
            <Text style={styles.btnText}>Submit</Text>
          </View>
        </Pressable>
      </View>
    </ScrollView>
  );
};

const styles = StyleSheet.create({
  container: {
    flex: 1,
    backgroundColor: '#E5E5E5',
  },
  header: {
    paddingTop: 80,
    justifyContent: 'center',
    alignItems: 'center',
    marginBottom: 16,
  },

  pageTitle: {
    fontSize: 32,
    fontWeight: 'bold',
    color: '#000000'
  },

  optionText: {
    fontSize: 20,
    color: 'gray',
  },
  content: {
    justifyContent: 'space-between',
    paddingHorizontal: 16,
    paddingVertical: 4,
    backgroundColor: '#E5E5E5',
    marginVertical: 10,
  },
  input: {
    height: 40,
    margin: 12,
    borderWidth: 2,
    borderRadius: 50,
    padding: 10,
    borderColor: '#3C48FC',
  },
  label: {
    fontSize: 20,
    marginBottom: 1,
    marginLeft: 5,
    color: 'gray',
  },
  message: { justifyContent: 'center', alignItems: 'center' },
  btnContainer: {
    justifyContent: 'center',
    marginTop: 52,
    paddingHorizontal: 16,
  },
  pressable: {
    borderWidth: 0,
    flexDirection: 'row',
    alignItems: 'center',
    justifyContent: 'center',
    borderRadius: 4,
    width: '100%',
    height: 48,
    backgroundColor: '#3C48FC',
  },
  btnTextWrapper: { justifyContent: 'center', alignItems: 'center' },
  btnText: {
    fontWeight: 'bold',
    fontSize: 16,
    lineHeight: 24,
    color: 'white',
  },
});



export default App;

The code above does the following:

• Input field to the user’s shipping address.
• A message is shown when the user submits.
• Using testID props on the element that would be accessed in the test suite.
• The user can click the submit button after filling out the form.

So, in the next section, you’ll be able to test the functionalities built using Detox.

Test Your Application With Detox

With the Detox APIs, the test suite imitates actions similar to a real user interacting with the app. Replace the code below with what you have in your e2e/starter.test.js file:

describe('ShippingAddress', () => {
  beforeAll(async () => {
    await device.launchApp();
  });

  it('should have welcome screen', async () => {
    await expect(element(by.id('pageTitle'))).toBeVisible();
    await element(by.id('pageTitle')).tap();
  });

  // input phone
  it('should enter the Phone value', async () => {
    await element(by.id('phone')).clearText();
    await element(by.id('phone')).typeText('+1-202-555-0114');
  })

  // input shipping Address One
  it('should enter the Shipping Address One value', async () => {
    await element(by.id('shippingAddrOne')).clearText();
    await element(by.id('shippingAddrOne')).typeText('7262 Cactus Court Chino Hills');
  })

  // input shipping Address Two
  it('should enter the Shipping Address Two value', async () => {
    await element(by.id('shippingAddrTwo')).clearText();
    await element(by.id('shippingAddrTwo')).typeText('14 North Smith Ave. Riverside');
  })

  // input city
  it('should enter the City value', async () => {
    await element(by.id('city')).clearText();
    await element(by.id('city')).typeText('CA');
  })

  // input Zip code
  it('should enter the Zip value', async () => {
    // scroll to zip code input fied when hidden from the screen
    await waitFor(element(by.id('zipCode'))).toBeVisible().whileElement(by.id('scrollView')).scroll(50, 'down')
    await element(by.id('zipCode')).clearText();
    await element(by.id('zipCode')).typeText('92509');

  })

  it('should click the submit button', async () => {
    // scroll to submit button when hidden from the screen
    await waitFor(element(by.id('submitButton'))).toBeVisible().whileElement(by.id('scrollView')).scroll(60, 'down')
    await element(by.id('submitButton')).tap();
  });
});

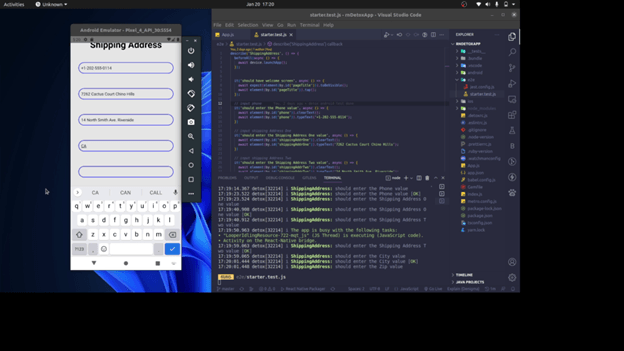

Execute the Test Suites

In order to execute the test suite, ensure you’re in the project root.

After that, start the app with this instruction:

yarn start

Then, open a new terminal in the root of the app to build the app with Detox. To do that, run this command:

npx detox build -c android.emu.debug

After that, it’s time to execute the test cases using the following command:

npx detox test -c android.emu.debug

React Native, E2E Testing, and Detox: Putting It All Together

In the test automation pyramid, E2E testing is crucial to validate that the entire system behaves as intended. E2E testing is vital to ensuring the entire flow in your app has no defects. With the help of tools like Appium or Detox, you can perform this test in your React Native app. Even more, the Detox test framework enhances the automated way to test while accessing the data and UI elements.

In this guide, you’ve seen the relationship that exists between Detox and mobile testing. Also, you’ve learned about how the Detox test framework works while setting up your own test suites.

While building your apps, and before going into production, cater to the user experience by leveraging Detox for E2E testing.
