Model-based testing: A complete beginner's guide

Modern software development moves fast, but traditional test automation hasn’t kept up. Script-based testing forces QA teams into a cycle of writing, breaking, and fixing scripts and harnesses every time an element ID shifts or a UI updates.

Model-based testing (MBT) addresses this ongoing process by decoupling an application’s implementation from its business logic. So, instead of relying on brittle, hand-coded scripts, MBT uses abstract models to generate, execute, and update resilient test suites.

In this comprehensive guide, we’ll break down how MBT works, explore the most common models used in production, and examine how enterprise teams scale it to reduce overhead and accelerate release cycles.

What is model-based testing?

The obvious answer to the question “What is model-based testing?” would be “testing based on models.” So, let’s define what we mean by “model” when we’re discussing software and software design.

Developers, testers, and architects use models as a tool for reasoning about systems that span thousands or even millions of lines of code.

What is a model?

A model is an abstract, structured representation of an application’s or system’s logic, behavior, and interfaces. Developers, testers, and architects use models as a tool for reasoning about systems that span thousands or even millions of lines of code.

These models can take several forms, depending on what your development and testing goals are. For example, a graphic user interface (GUI) designer might create a wireframe model of user interface (UI) elements.

A systems architect could use a blueprint representing application programming interface (API) endpoints, and a developer could make a behavior model like a truth table part of their toolkit.

A model often serves as a single source of truth for an application or system, which is useful when it’s time to design tests.

What is model-based testing?

Model-based testing (MBT) is a software testing methodology that derives test cases, data, and schemes from one or more models that represent the intended behavior and architecture of the application under test.

In script-based test automation, QA engineers create code that interacts directly with specific application elements and interfaces.

These scripts tend to hardcode their technical implementation alongside their test logic, so even minor changes render the tests obsolete. This approach leads to high maintenance overhead and slows the development pipeline.

By decoupling test logic from application implementation, MBT makes your tests more robust.

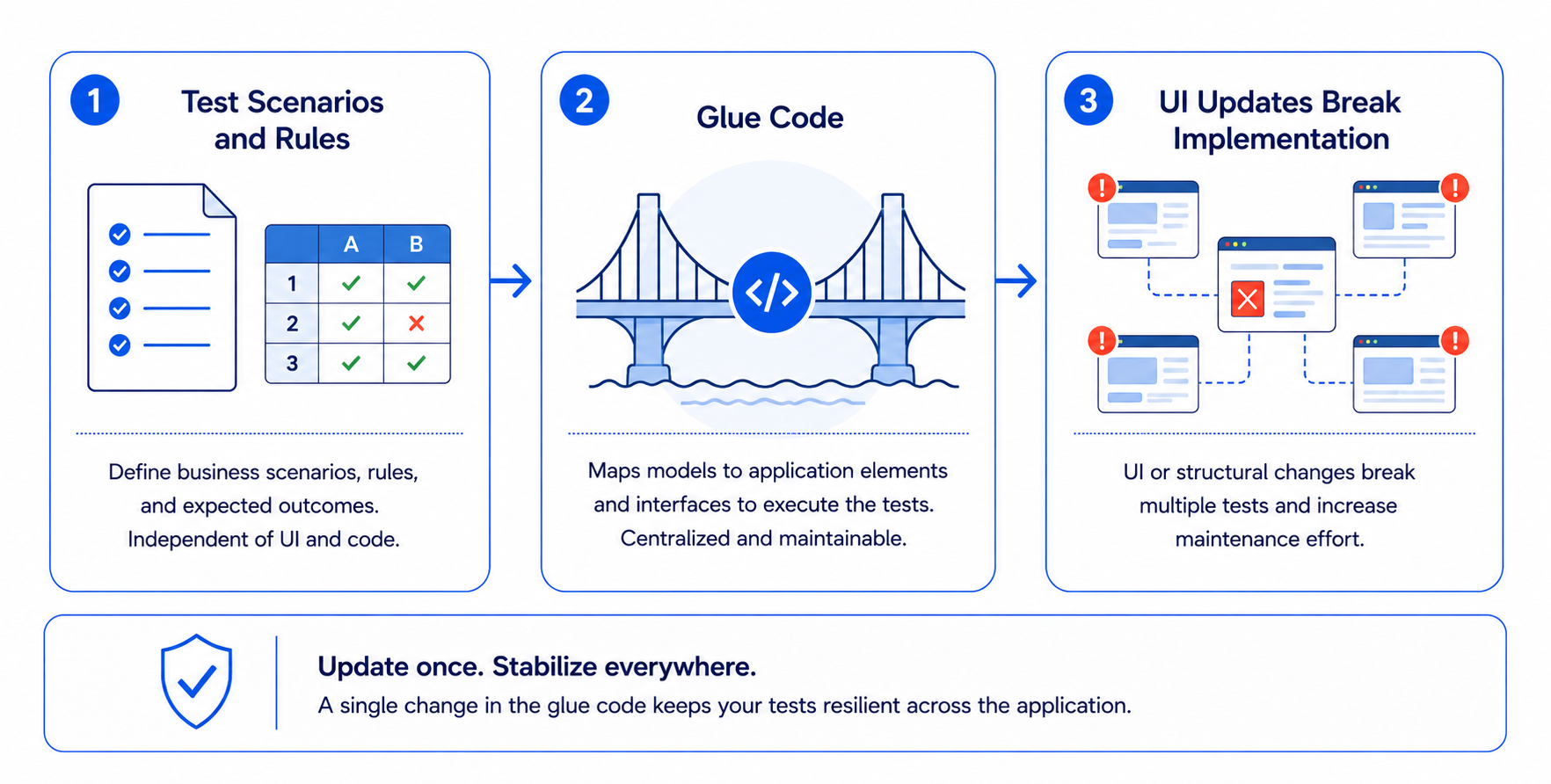

Traditional test implementations have “glue code” that makes tests brittle. So, a change to a user interface almost always leads to test failures.

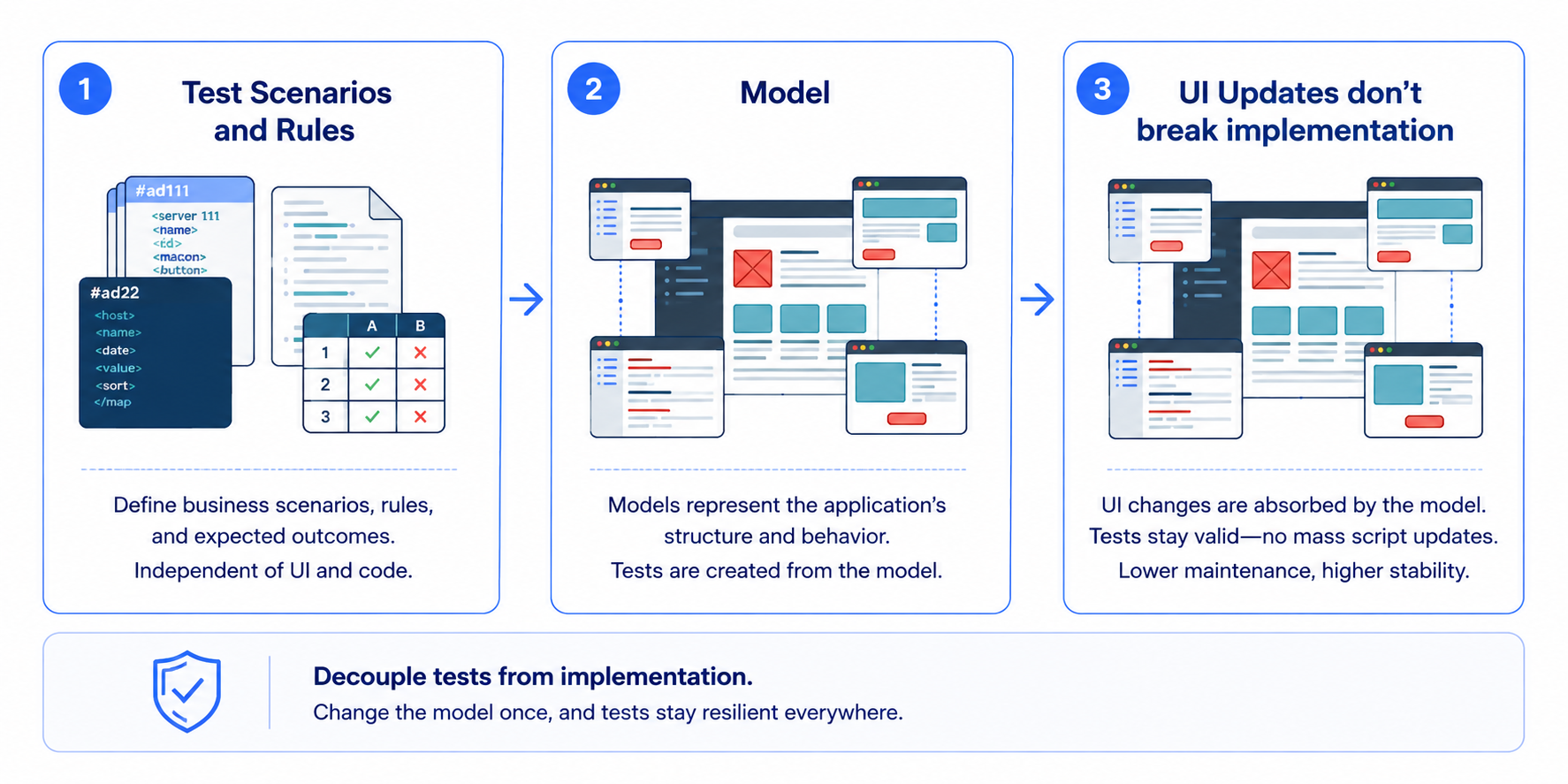

Model-based tests, on the other hand, are based on abstractions, so they handle updates more readily:

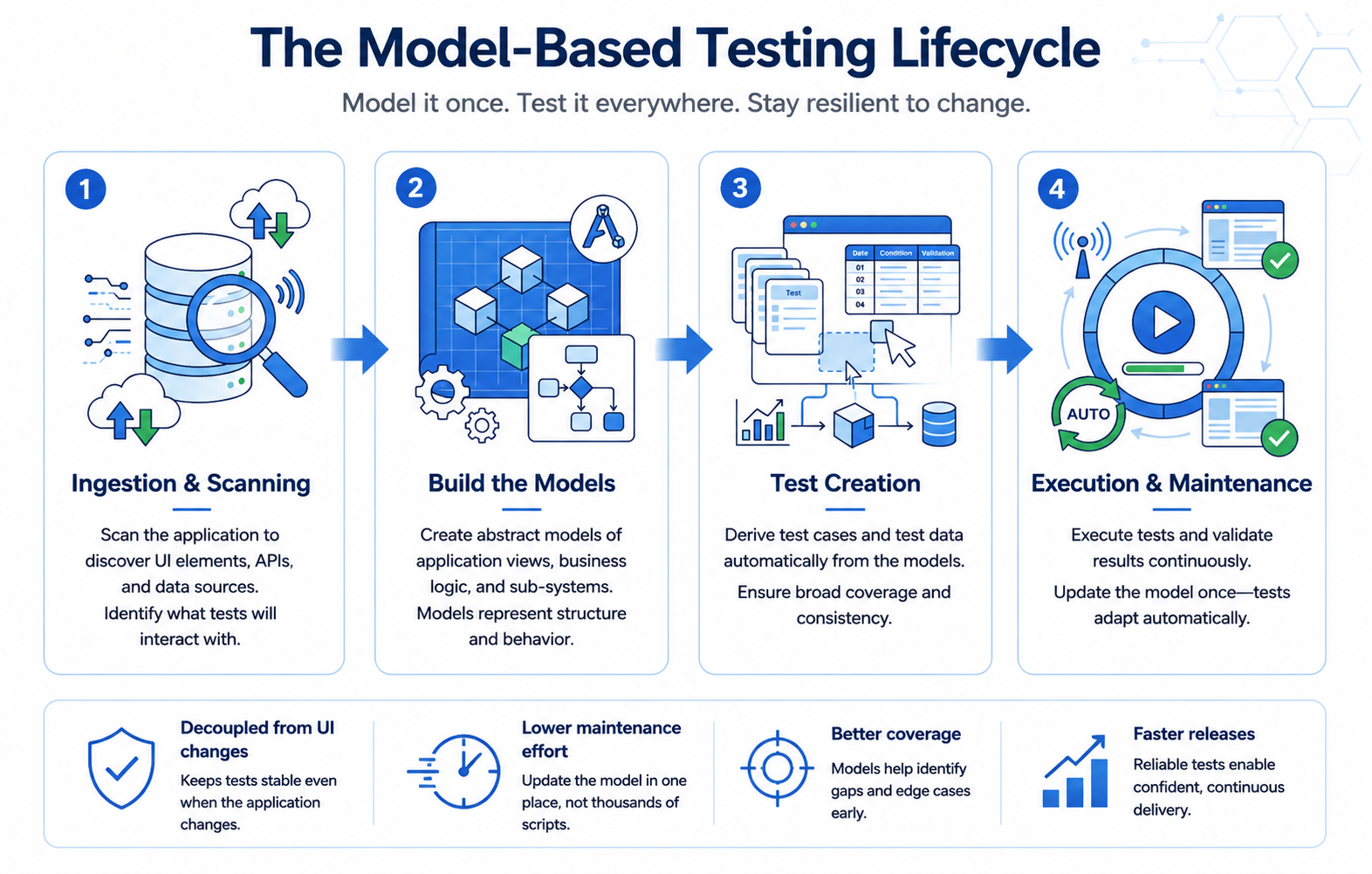

How does model-based testing work?

For some, creating tests that withstand nontrivial application changes sounds like magic, but that’s not the case at all. Model-based testing, when implemented with the right tools, is a straightforward process with a clear, four-stage lifecycle.

“Model-based testing builds on previous generations of testing tools. Like the action-word and keyword-based approaches to testing, model-based testing relies on abstraction, and like the automated test script approach, it produces executable scripts.” — Mark Utting and Bruno Legeard, Practical Model-Based Testing: A Tools-Approach (2007)

Ingestion & Scanning

The first step in model-based testing is identifying the components that make up the models. This is most often done by scanning the code with an automated tool that identifies how the tests will drive the application.

The tool inspects the UI, Document Object Model (DOM), API, or database layers to extract controls and interfaces. These elements are where tests interact with the application.

Instead of relying on library calls or other methodologies that rely on the application’s implementation, these tests live outside the underlying code. So when the application changes, only a new scan is required, as opposed to modifying or creating a test harness.

Building the models

Now it’s time to take that list of UI elements and API calls into a blueprint of how the application works. This blueprint often takes the form of visual elements that a tester can reason about and manipulate in a GUI.

Why is this step necessary? We’ve already assembled a comprehensive list of interface elements, so we know how to drive the application. Why not get right to work creating tests?

Without models, the elements and the features they test are scattered across scripts. They’re isolated from your application’s code, which goes a long way towards making your tests easier to maintain.

But they’d still be an unstructured jumble of code with no unifying model. So, the tool consolidates the elements into representations of views and operations, such as “Login Screen,” “Checkout,” or “Process Payment.”

This step goes further in decoupling your business logic from your application’s implementation. The next step demonstrates how you do this.

Test creation

Now, we have visual models that QA engineers, developers, and domain experts can manipulate to create tests without touching a line of code. Testers manipulate the models, and the platform creates the corresponding tests.

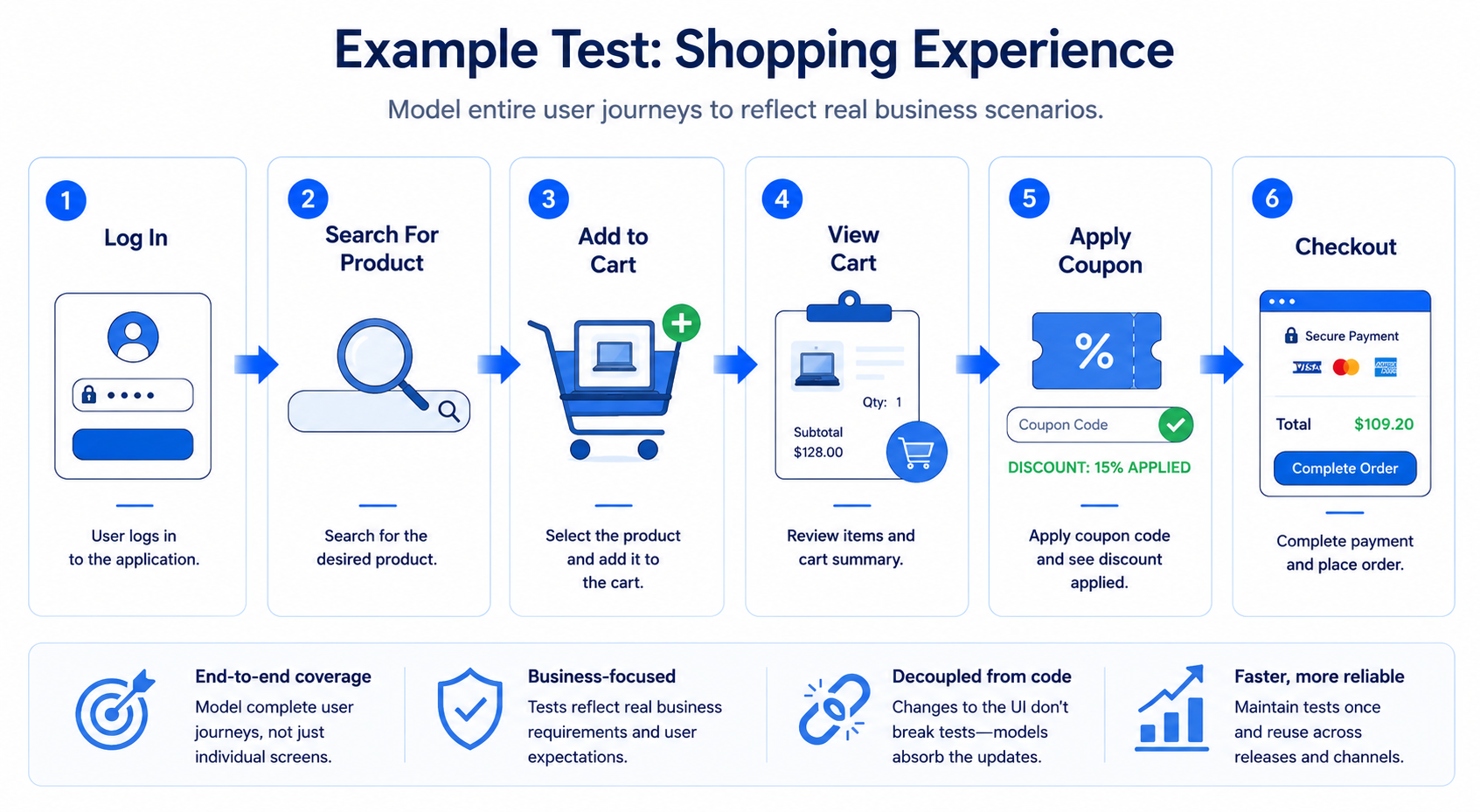

These tests can take the form of entire user journeys instead of simply testing a single element or application screen. So, a tester can create a test that represents a shopping experience:

This equips testers with clear test cases that reflect business requirements that are completely decoupled from application code.

Execution & maintenance

Step three left us with comprehensive tests that you can run in CI/CD pipelines and integration environments. So, these tests verify your end-to-end business logic at regular intervals.

When your application changes, you rescan the affected components or, if the changes are broad enough in scope, update the core models. But this is a process you perform once for each change, and there’s still no need to manually alter test code.

The models in MBT aren’t one-size-fits-all, and they’re not made up on the spot.

Common models used in model-based testing

The models in MBT aren’t one-size-fits-all, and they’re not made up on the spot. Your testing goals and application architecture require different modeling techniques. Depending on whether you’re trying to verify your business logic or user interface controls, you’ll rely on specific behavioral or structural approaches.

Here are the most common models used in MBT:

1. Finite state machines

A finite state machine (FSM) is a model for representing a system that occupies one of a finite number of states at any time. The system transitions from one state to another when triggered by an event, which may be user input or a message from another system.

In model-based testing, finite state machines provide you with a clean way to map out event-driven business logic. Rather than manually mapping out individual code paths, an MBT tool uses an FSM to analyze all valid (and invalid) state transitions and generates test paths that cover them.

An FSM comprises these components:

1. States

The specific conditions or modes the application can reside in. For example, an e-commerce app might have “Logged Out,” “Empty Cart,” “Active Cart,” and “Payment Pending.”

2. Events

Triggers supplied by a user or external system. The same sample application could use “Login,” “Add Item,” “Inventory Empty,” “Check Out,” and “Enter Payment.”

3. Transitions

The rules that govern how an event moves the model from one state to another. An e-commerce rule would say that the application cannot transition to “Check Out” with an empty shopping cart.

4. Outputs & actions

The response the system generates during or after a state transition—sjo, error messages, receipts, etc.

Sample FSM test cases

Let’s dive a little deeper into our e-commerce example by seeing how an MBT platform might map an FSM for an e-commerce website into a set of simple tests.

FSM benefits

Using finite state machines to generate tests offers QA engineers and product designers several benefits. Here are some of the primary ones:

1. Uncovering edge cases

FSMs force you to define what happens during invalid transitions, like trying to edit an address after an item ships.

2. Algorithmic test generation

MBT tools use graph traversal algorithms in an FSM to automatically generate the shortest path of test cases to achieve complete state and transitions.

3. Simplified maintenance

If you need to add a new state, such as “Awaiting Warehouse Pick,” you can add the new node and associated transitions and allow the MBT to create the new tests.

Activity diagrams & flowcharts

While FSMs focus on system states and transitions, activity diagrams, a subset of Unified Modeling Language (UML), and flowcharts focus on operational workflows. They model the sequential and parallel actions the system follows to accomplish a business objective.

In MBT, activity diagrams are the visual bridge between functional requirements and test paths. MBT tools analyze the diagrams and use the nodes, decision points, and parallel branches to create test paths that ensure complete test coverage.

Activity diagrams contain these core elements:

1. Action/task nodes

These elements represent operational steps performed by a user or the system—for example, log out, add an item, or check out.

2. Decision nodes

The decision points, usually represented as diamonds, add branches to workflows using Boolean logic or conditional rules, such as “is user address specified,” “is total > $50,” and “is coupon data valid.”

3. Merge nodes

These are entries that combine separate decision branches into a single workflow stream. For example, entering a coupon might create a new flow, and its approval or rejection rejoins the main checkout stream.

4. Fork & join nodes

These elements represent parallel execution paths that branch, execute simultaneously, and rejoin each other. For example, the system might send a confirmation email while updating an inventory level.

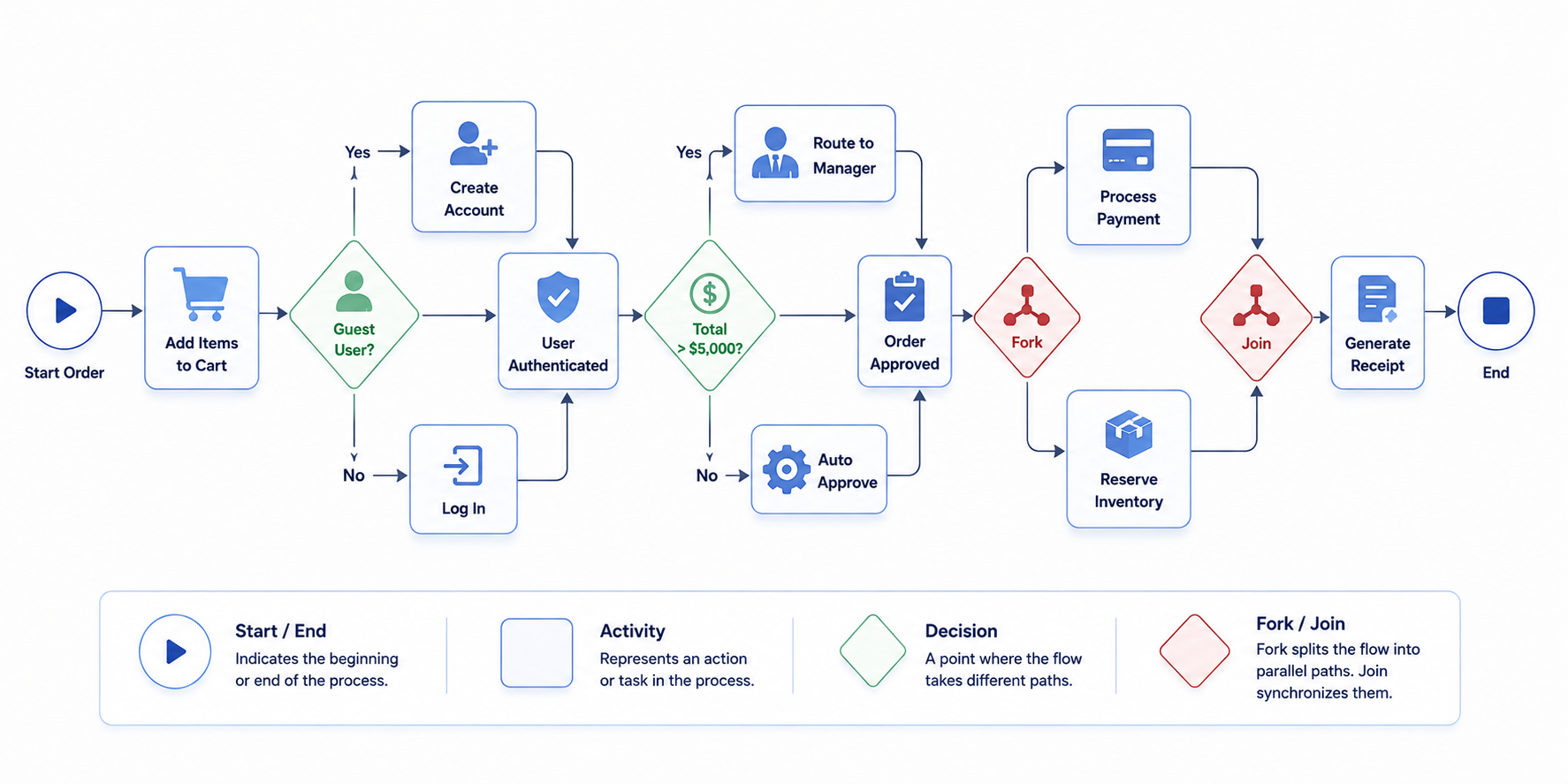

Sample activity flow

Activity diagram & flowchart benefits

These diagrams present a unique set of benefits, especially for complex workflows. For example:

1. Seamless business-to-QA translation

Activity diagrams mimic a business process map, so product managers and domain experts can review and validate these models directly, without delving into the code.

2. Path coverage

MBT tools can apply graph algorithms, like cyclomatic complexity, to identify each branch and decision loop, ensuring it misses no logical paths.

3. Parallel action verification

These models explicitly define asynchronous, parallel workflows, making it easier to test for race conditions and synchronization logic.

Decision tables

With state machines tracking system status over time and activity diagrams mapping step-by-step workflows, you’d think we have testing covered.

But what happens when your system logic has complex business rules, where multiple input conditions lead to specific sets of actions? That’s where decision tables come in.

Decision tables eliminate the guesswork and drudgery when verifying compound Boolean logic. The MBT tools parse the matrix represented by decision (or truth) tables to ensure every valid combination of inputs is tested without writing redundant scripts or missing invalid sets or critical edge cases.

Decision tables comprise:

1. Conditions

The set of variables, feature flags, or user attributes evaluated by the system. This might include the customer status, the validity of a coupon, or the total price of a shopping cart.

2. Actions

The explicit outcomes or behaviors triggered by a set of conditions. Valid actions could be to discount the order total, invalidate the order, or offer free shipping.

3. Rules

The universe of valid combinations of conditions and variables and their associated valid actions.

Decision tables eliminate the guesswork and drudgery when verifying compound Boolean logic.

Decision table example

Let’s say we have a promotional engine that determines discount eligibility, free shipping, and gift offers during checkout based on three criteria: customer status, promo code, and order value.

Test suite

An MBT platform might read the table above and create these tests.

Decision table benefits

Here are some benefits to creating a decision table:

1. Reduces blind spots

Manual test creation often misses conflicting rule combinations. Decision tables force the explicit definition of all logical (and potentially illogical) sets of inputs before development starts.

2. Direct requirements validation

Decision tables are useful far beyond an input for test generators. They’re a source of truth about how your application will act in production.

3. Automated efficiency

MBT algorithms can compress complex and extensive decision tables into the minimum number of tests required for complete coverage.

Why use model-based testing?

Understanding the models above and how they help build tests decoupled from specific implementations is important. But leaders evaluate testing strategies through a broader lens. How can this help them improve their team’s efficiency and lower the cost of quality?

Most teams settle on MBT because they want to break the bottlenecks created by traditional manual and code-heavy automation frameworks. So, let’s see why enterprise teams transition to a model-first strategy.

Most teams settle on MBT because they want to break the bottlenecks created by traditional manual and code-heavy automation frameworks.

Reduced test maintenance overhead

Conventional test automation creates scripts that are coupled to the application’s underlying implementation, like GUI elements such as DOM locators, element IDs, or API schemas. So, UI changes or backend tweaks ripple through the test stack, breaking scripts and forcing engineers into break/code/fix cycles.

MBT breaks this cycle through abstraction. It places the API interfaces and GUI elements into a single model layer and updates it for you when you re-scan your application.

So when the code changes, teams aren’t spending hours or days refactoring linear scripts. They update the model and continue reasoning about the business logic, not test scripts.

Removing logical blind spots

Manual test creation relies on human intuition, which often leads to coverage gaps, especially when you’re dealing with complex business rules that mutate and change.

Decision tables and finite state machines replace guesswork with mathematical precision. MBT platforms evaluate state transition matrices and truth tables to calculate the path combinations needed to cover your application.

This helps you discover unhandled edge cases, invalid state transitions, and conflicting business logic, often before code reaches production when your move to MBT is part of a shift-left project.

Bridging the gap between business and technology

Misalignments between what business analysts design, developers build, and QA tests are a perennial problem. Code-heavy test harnesses exacerbate these problems by hiding testing in a black box.

MBT relies on visual representations that serve as a common language. Business analysts review a flowchart to confirm business rules, while QA uses the same picture to drive their automated tests. This eliminates interpretation errors and ensures tests reflect business intent, not isolated technical actions.

Traditional scripting vs. model-based testing at a glance

Challenges and limitations of model-based testing

Model-based testing has compelling advantages in scalability, maintenance, and coverage, but it’s not plug-and-play. It has several limitations, and organizations that don’t proceed with them in mind will inevitably encounter issues during its implementation.

Upfront investment

MBT requires significant upfront effort before you can execute that first set of test scenarios.

1. Model design overhead

Teams will spend considerable time mapping their business logic, designing state machines, or scanning and structuring component libraries.

2. Tooling infrastructure

MBT platforms, such as Tricentis Tosca, often need specialized configuration and integration into development workflows and CI/CD pipelines.

3. Delayed ROI

The initial focus in MBT is on building the models and getting the tools up and running. So, the return on investment is realized in months, not days.

MBT requires significant upfront effort before you can execute that first set of test scenarios.

Steep learning curve

MBT ‌alters your testers’ roles, shifting their primary focus from manual execution or code-level test automation to abstraction and systems modelling.

1. Conceptual complexity

QA engineers need to add abstract modeling to their toolboxes, such as translating user stories into state transitions, diagrams, or component models.

2. Cultural resistance

Engineers accustomed to writing code may resist using low-code visual models.

Model fragility

In MBT, your model is the single source of truth. That makes it a single source of failure, too.

1. Flawed requirements

If you build an activity diagram or state machine on incorrect or incomplete requirements, the MBT engine will generate incorrect or incomplete tests.

2. Over-engineered models

The opposite of incomplete is over-engineered. Overly dense or poorly structured models are difficult to debug and maintain.

Managing dynamic or unpredictable UI elements

Component-based MBT works well with standard application controls, but it can struggle with custom or highly dynamic interfaces.

1. Custom controls

Complex HTML5 canvases, shadow DOM elements, video streams, and non-standard desktop elements may require scanning custom extensions or low-level locators into a standard model.

2. Asynchronous timing

Your model may accurately represent your application’s logical flow, but physical execution can still experience race conditions or rendering delays if you don’t properly configure runtime parameters.

Balancing the pros and cons at a glance

Scaling MBT with Tricentis Tosca

Executing MBT at scale requires a robust technology platform. Tricentis Tosca has established itself as an industry standard, translating low-code model construction into resilient automation.

Tosca operationalizes the MBT lifecycle by decoupling technical details from logical test scenarios, allowing QA teams to build, scale, and maintain large test suites with minimal friction.

Technical abstraction via Tosca XScan

The foundation of Tosca’s model-based approach is Tosca XScan, an automated scanning engine that extracts the underlying technical structure of an application. It inspects user interfaces, API endpoints, and databases to identify control properties.

Instead of hardcoding locators into test scripts, it packages them into reusable, visual modules. These modules serve as the single source of truth for the application’s interface layer, isolating technical details from business logic.

Low-code test case assembly

Once you’ve established your library of modules, test creation is a visual, drag-and-drop process.

Testers build end-to-end user journeys by arranging modules sequentially into test cases. Business logic remains clean and readable, reflecting actual operational requirements rather than lines of execution code.

Centralized maintenance and linear scalability

The primary advantage of scaling MBT with Tosca lies in its efficiency. In traditional automation frameworks, an updated button ID or altered navigation flow breaks linear scripts.

With Tosca, your teams don’t alter or debug individual test cases. They rescan the updated component, save the modified module, and retest.

Case Study: How GBST Replaced Fragile Scripting With MBT

To see the operational and business impact of model-based test automation in the real world, consider global financial technology provider GBST.

The challenge

Following a digital transformation, GBST’s development velocity sped up. But their QA process hit a major bottleneck:

1. Legacy automation

GBST had attempted test automation using script-based, data-driven, and keyword-based frameworks. The resulting suites were fragile, costly to maintain, and triggered too many false positives.

2. High maintenance & slow regression

Manually maintaining scripts required programming knowledge. So, regression testing became a fallback that stalled release cycles and increased their time to market.

The solution

GBST selected Tricentis Tosca for its model-based test automation approach, which removed the need to build and maintain code-based test frameworks.

1. Democratizing QA

Visual, low-code component models made it possible for non-technical testers to design and maintain robust test cases.

2. Risk-based prioritization

The team used Tosca to prioritize and automate their highest-risk business transactions first, integrating execution into their CI pipeline for early feedback.

The outcome

Within six months, GBST automated regressions across their core products, improving speed, stability, and team collaboration. This included

1. An 80% reduction in time and effort required to execute the core regression test suite.
2. Over 7,000 automated test cases and 670,000+ test steps implemented across enterprise systems.
3. Significantly fewer production defects, allowing GBST to scale their client base and roll out new features without compromising release confidence or software quality.

You can read more about this case study here.

Model-based testing is more than just a QA framework—it’s a shift to resilient software quality with less maintenance and increased confidence.

Move forward with MBT

Model-based testing is more than just a QA framework—it’s a shift to resilient software quality with less maintenance and increased confidence.

By decoupling business logic from the underlying implementation, MBT transforms testing from a potential bottleneck to an automated, trustworthy asset.

Whether through state machines, activity flows, or decision matrices, a model-first approach unifies teams behind a single source of truth that everyone can collaborate on.

Ready to see how model-first testing transforms enterprise QA? Explore how Tricentis helps teams scale model-based test automation across web, mobile, API, and enterprise applications.

This post was written by Eric Goebelbecker. Eric has worked in the financial markets in New York City for 25 years, developing infrastructure for market data and financial information exchange (FIX) protocol networks. He loves to talk about what makes teams effective (or not so effective!).
