Types of software testing and when to use them

Tests are commonplace for every software team. But not every team tests the right things at the right time.

For instance, a startup racing towards its first release might pour effort into end-to-end UI checks while ignoring the unit tests that would catch bugs in minutes instead of hours.

Also, an enterprise team might run thousands of regression tests nightly but skip performance testing until a product launch collapses under real traffic. Most of the time, the tests themselves aren’t the problem.

The problem is choosing which types of testing to apply, when to apply them, and how they fit together into a strategy that actually catches defects before users do.

The challenge in software testing is that it’s not just one activity but a collection of distinct testing types, each designed to catch a different category of defect at a different stage of development.

Picking the wrong type, or skipping one entirely, leaves gaps that bugs will find before your users report them.

This guide breaks down the major types of software testing, explains when each one applies, and shows how they work together to form a layered testing strategy.

What is software testing?

Software testing is the process of evaluating a system to verify that it meets specified requirements, validate that it fulfills user needs, and identify defects to ensure quality and mitigate risk before production.

It covers everything from checking a single function in isolation to validating an entire system under heavy load.

Testing matters because the cost of finding defects late is dramatically higher than catching them early. According to the Consortium for Information & Software Quality (CISQ), poor software quality costs the U.S. economy an estimated $2.41 trillion in 2022.

The mentioned figure includes operational failures, unsuccessful development projects, and growing technical debt. Much of that cost traces back to defects that were either never caught or caught too late in the development lifecycle.

Edsger Dijkstra quoted, “Testing can be used to show the presence of bugs, but never to show their absence.”

It is still valid even decades later. No single test or testing type can guarantee your software is defect-free.

This is precisely why teams need a layered testing strategy: different testing types are designed to catch different categories of defects at different stages of development. The more intentionally you combine them, the smaller your blind spots become.

Testing types can be grouped in several ways, and understanding those categories is the first step toward building a plan that covers the right ground.

Testing can be used to show the presence of bugs, but never to show their absence.

How software testing types are categorized

Software testing types are mainly organized along two axes: what the test validates and how the test is executed.

The first axis divides tests by purpose. On that note, here’s the difference between functional and non-functional testing:

• Functional testing verifies that the software does what it is supposed to do by checking features and behaviors against defined requirements.
• Non-functional testing evaluates how the system performs under various conditions, covering attributes like speed, security, scalability, and usability.

To illustrate the difference, a login form that accepts valid credentials and rejects invalid ones is a functional concern. That same login form loading in under two seconds during peak traffic is a non-functional concern.

The second axis divides tests into manual and automated methods. Some tests are executed by a human tester who interacts with the application directly, while others are scripted and run programmatically.

Both approaches have their place, and most developed testing strategies use a combination of the two. We’ll break down when to use each one later in this guide.

These axes often intersect, as the categories are not mutually exclusive. A functional test can be executed manually or through automation, and the same applies to non-functional tests.

Performance testing, for example, is a non-functional type that is almost always automated because simulating thousands of concurrent users by hand is simply not practical.

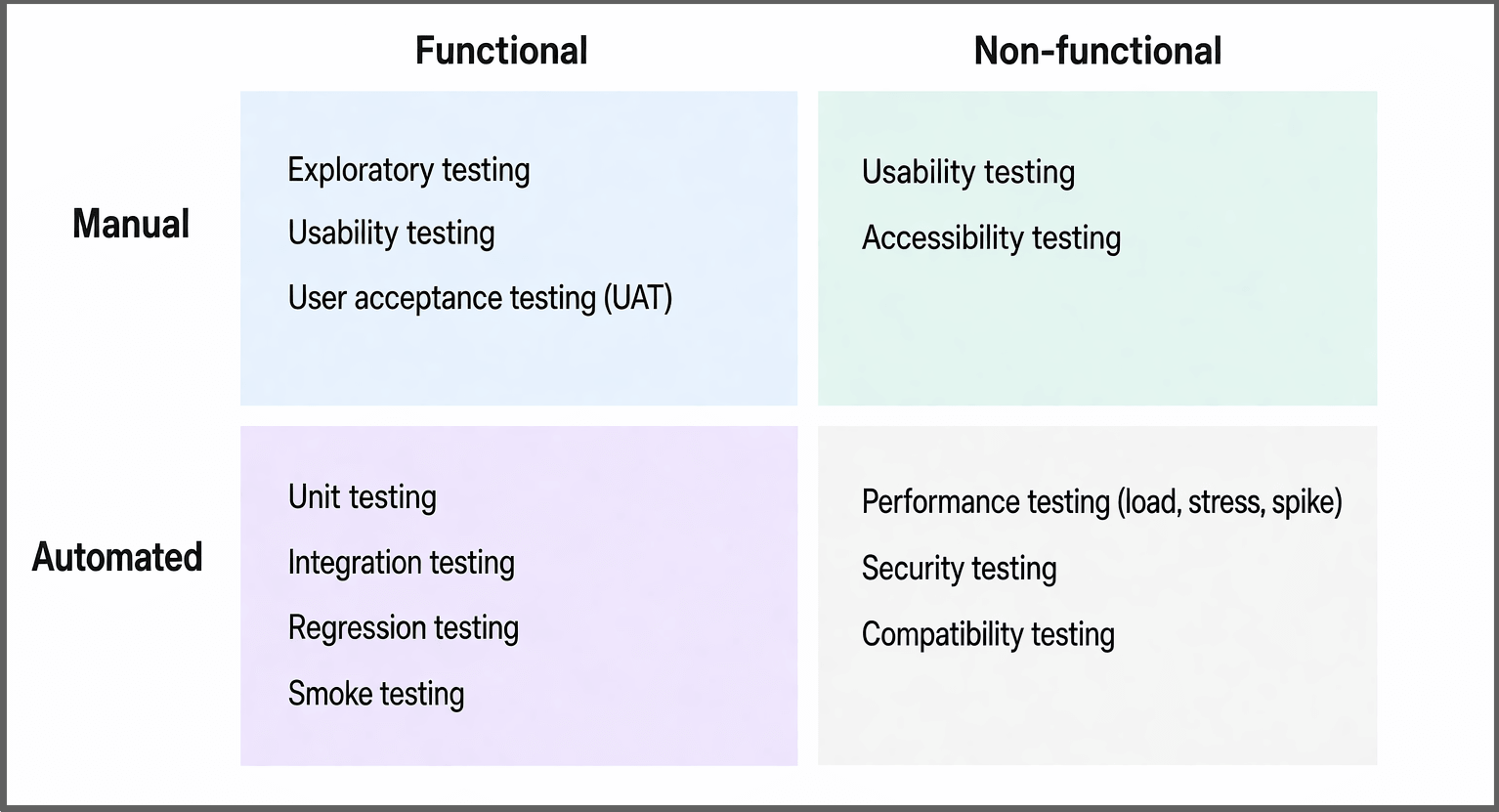

The illustration below maps out how these categories relate and where common testing types fall within them.



This image was created by the author using Gemini

With this framework in mind, let’s start with functional testing types, since they validate the core behaviors users depend on most.

Functional testing types

Functional testing focuses on what the software does. Each test type in this category validates whether specific features, workflows, or interactions behave according to their requirements.

The types below are ordered roughly by when they tend to appear in a typical development and release workflow.

Smoke testing

Smoke testing is a broad, surface-level check that verifies whether the most critical functions of an application work after a new build or deployment. It answers the question of whether the build is stable enough to test further.

In most cases, smoke tests are the first line of defense after a build. If the application won’t launch, the login page throws an error, or core navigation is broken, there’s no point running deeper tests.

Teams use smoke tests as a go/no-go gate before committing time and resources to more thorough testing. They run fast and catch fatal failures early, but they are too shallow to uncover subtle or edge-case bugs.

A failed smoke test saves hours of wasted effort. A skipped smoke test risks spending those hours before discovering the build was broken from the start.

Sanity testing

Sanity testing is a narrow, focused check that verifies whether a specific bug fix or feature change works as expected before broader testing begins. Where smoke testing is wide and shallow, sanity testing is narrow and deep.

Sanity tests are typically run after a targeted code change. If a developer fixes a payment calculation bug, a sanity test confirms that the fix works correctly before the team runs a full regression suite.

This saves time by catching failed fixes early, but the limited scope means sanity tests don’t tell you anything about the rest of the system. They confirm a specific change, not overall stability.

If a developer fixes a payment calculation bug, a sanity test confirms that the fix works correctly before the team runs a full regression suite.

Unit testing

Unit testing validates individual components of an application, such as functions, methods, or classes, in complete isolation from the rest of the system. These tests are written and run by developers during the coding process itself.

The best time to use unit testing is during active development, as code is being written or modified. Unit tests provide the fastest feedback loop in the entire testing stack. They execute in milliseconds, pinpoint exactly where a failure occurs, and cost very little to run.

The tradeoff is the scope it covers. A unit test can confirm that a single function calculates a discount correctly, but it cannot tell you whether that function works properly when connected to the pricing service, the shopping cart, or the checkout flow.

Unit tests catch bugs at the source, but they don’t catch what happens when the pieces come together.

Integration testing

Integration testing verifies how individual modules, services, or components interact with each other when combined. It picks up where unit testing leaves off, focusing on the connections between parts rather than the parts themselves.

After confirming that individual components work in isolation, integration tests check whether data flows correctly between them, whether APIs return expected responses, and whether services communicate without errors.

Common approaches include top-down testing (starting from the highest-level modules and working down), bottom-up testing (starting from the lowest-level modules), and big bang testing (combining all modules at once).

Integration tests are more complex to set up than unit tests because they require multiple components to be running.

While the big bang method involves combining all modules at once, it is generally advised to integrate incrementally; combining everything at once can make isolating failures nearly impossible, as the issue could live in either component or in the interface between them.

System testing

System testing evaluates the complete, integrated application as a whole against its specified requirements. It tests the software in an environment that closely mirrors production.

System testing happens after integration testing, typically in a staging or pre-production environment. At this stage, the question shifts from “do the components connect properly?” to “does the entire application behave as expected end-to-end?”

This includes testing complete user workflows, verifying that business rules are applied correctly across the system, and confirming that the application handles real-world data and configurations.

System tests validate end-to-end behavior, but they are slower to execute and require a fully assembled system, which means they are more expensive to run and maintain than the testing types earlier in this list.

Acceptance testing confirms that what was built matches what was needed.

Acceptance testing

Acceptance testing determines whether the software meets business requirements and is ready for release to end users. It is the last validation step before a product goes to production.

The most common form is user acceptance testing (UAT), where actual business stakeholders or end users verify that the software solves the problems it was built to solve.

Other forms include business acceptance testing (focused on business process alignment) and regulatory acceptance testing (focused on compliance with industry standards or legal requirements).

Acceptance testing confirms that what was built matches what was needed. Unlike system testing, which is typically owned by QA or engineering teams, acceptance testing often involves business stakeholders, product managers, or end users.

The risk of skipping it is delivering software that works technically but fails to meet the actual business need, and catching that mismatch after release is the most expensive fix of all.

Regression testing

Regression testing confirms that recent code changes have not broken or degraded existing functionality. It is one of the most frequently run and most commonly automated testing types across the industry.

Every time developers push new code, merge a feature branch, or deploy a hotfix, there is a risk that the change introduces unintended side effects somewhere else in the application. Regression tests guard against this by rerunning tests for existing features after every change.

This makes regression testing a natural fit for CI/CD pipelines, where tests run automatically with each commit. The challenge is scale: as applications grow, regression suites can expand to thousands of test cases.

Without regular pruning and maintenance, they become slow, flaky, and expensive. Well-maintained regression suites are one of the highest-value investments a testing team can make. Neglected ones become the test suite nobody trusts.

Non-functional testing types

Non-functional testing shifts the focus from what the software does to how well it does it.

These tests evaluate attributes like speed, stability, security, and usability that directly affect user experience and operational reliability, even when every feature is technically working as expected.

Performance testing

Performance testing measures how a system behaves under various levels of load, evaluating response times, throughput, and resource usage. It answers the question of whether an application can handle real-world usage without slowing down or failing.

Performance testing covers several subtypes, each targeting a different concern. Load testing simulates expected user volumes to verify that the system performs acceptably under normal conditions.

Stress testing pushes beyond expected limits to find the breaking point. Endurance (or soak) testing runs the system under sustained load over extended periods to detect memory leaks and gradual degradation.

Spike testing simulates sudden surges in traffic to see how the application responds to rapid demand changes.

Teams should run performance tests before major releases, after infrastructure changes, and whenever user traffic patterns shift.

The cost of skipping performance testing is typically felt in production, as it could lead to slow page loads, timeouts during peak hours, or outright outages during a product launch.

These are problems that functional tests won’t catch because they feature works correctly, but they just can’t handle the volume.

Performance testing does require realistic test environments and representative data to produce meaningful results, which makes it one of the more resource-intensive testing types to set up properly.

The cost of skipping performance testing is typically felt in production, as it could lead to slow page loads, timeouts during peak hours, or outright outages during a product launch.

Security testing

Security testing identifies vulnerabilities, weaknesses, and risks in a software system to prevent unauthorized access, data breaches, and other security threats. It validates that the application protects both its data and its users.

Security testing takes several forms. Vulnerability scanning uses automated tools to detect known weaknesses across the application and its dependencies. Penetration testing simulates real-world attacks to evaluate how the system holds up against active exploitation.

Authentication and authorization testing verify that users can only access what they’re permitted to access, and that session management, password policies, and role-based controls work as intended.

Unlike most other testing types, security testing should happen continuously throughout the development lifecycle rather than only before releases. Architectural changes, new integrations, and third-party dependency updates can all introduce vulnerabilities at any point.

The specialized skill set required for thorough security testing often means teams bring in dedicated security engineers or external specialists, which adds cost and time, but the less favorable alternative would be discovering vulnerabilities after an attacker does.

Usability testing

Usability testing evaluates how intuitive, accessible, and user-friendly an application is from the perspective of its actual users. It focuses on the human experience rather than technical correctness.

A feature can pass every functional and performance test and still frustrate the people using it. Confusing navigation, unclear error messages, inaccessible form fields, or unintuitive workflows are all usability failures that technical tests won’t flag.

Usability testing typically involves real users performing tasks while observers note where they struggle, hesitate, or make errors.

It is most valuable during design and early development phases, when changes are cheaper to implement, but it should also be revisited after major redesigns or feature additions.

Usability testing is essentially subjective, which makes it harder to automate than other testing types. What feels intuitive to one user group may confuse another. This is one area where manual testing and human judgment remain irreplaceable.

Compatibility testing

Compatibility testing verifies that an application functions correctly across different browsers, operating systems, devices, and screen resolutions. It catches the platform-specific bugs that are invisible when you only test in one environment.

A web application that works flawlessly in Chrome on a desktop may break in Safari on an iPhone. A form that renders correctly on a wide monitor may become unusable on a tablet.

Compatibility testing covers these scenarios by validating the application across the matrix of environments your users actually use. This is particularly important for web and mobile applications that target diverse audiences.

The challenge with compatibility testing is scale. The number of browser, OS, device, and resolution combinations grows quickly, and testing every permutation manually is not realistic.

Teams typically prioritize based on analytics data showing which platforms their users rely on most, then automate the highest-priority combinations to keep execution time manageable.

Compatibility testing verifies that an application functions correctly across different browsers, operating systems, devices, and screen resolutions.

Manual vs. automated testing

Earlier, we mentioned that testing can be divided into manual or automated methods. Knowing when to rely on each approach is just as important as knowing which testing types to apply.

Manual testing

Manual testing is the practice of executing test cases by hand, where a human tester interacts with the application, observes its behavior, and evaluates the results without relying on automation scripts to execute the tests.

It relies on human judgment, intuition, and domain knowledge to catch issues that scripted checks might miss.

Manual testing is the better fit when the goal is exploration rather than repetition. It is also commonly used for executing predefined test cases where human validation is required.

Exploratory testing, where a tester investigates the application without a predefined script, depends on human curiosity and adaptability. Usability evaluations require real human reactions.

Ad hoc testing of new or unstable features benefits from a tester who can adjust their approach on the fly. In these scenarios, the tester’s ability to think creatively and react to unexpected behavior is the value.

Automated testing

Automated testing uses code or tools to execute test cases programmatically, reducing the need for manual interaction and allowing tests to run repeatedly at scale.

Once written, automated tests can be triggered on demand or integrated into CI/CD pipelines to run with every code change. Automated tests are most effective when the application behavior is stable, and the expected outcomes can be clearly defined.

Automated testing wins when the same tests need to run often, quickly, and consistently.

Regression suites that rerun after every commit, data-driven tests that cycle through hundreds of input combinations, cross-browser checks across multiple platforms, and performance tests simulating thousands of concurrent users are all cases where automation pays for itself quickly.

The upfront cost of writing and maintaining automated tests is higher, but the long-term return in speed and consistency is difficult to match manually.

In practice, the most effective testing strategies blend both.

Automation handles volume and repetition while manual testing covers the areas that require human judgment and creative thinking. The goal is to let each approach do what it does best rather than forcing one to do the other’s job.

Automated testing wins when the same tests need to run often, quickly, and consistently.

How to choose the right testing types for your project

There is no universal formula for selecting the right testing types.

The right combination depends on your project’s specific context, and what works for a fast-moving startup shipping weekly will look different from what works for a financial services team releasing quarterly under regulatory scrutiny.

That said, a few factors consistently shape the decision.

1. Project stage

Early-stage products with features still in flux benefit more from exploratory and usability testing than from investing heavily in large automated regression suites.

Mature products with stable codebases and frequent releases are the opposite: regression and performance testing become critical.

2. Risk profile

A bug in an internal dashboard is an inconvenience. A bug in a payment processing system or a healthcare application can have legal, financial, or safety consequences. The higher the stakes, the more testing layers you need.

3. Release cadence

Teams deploying multiple times a day need fast, automated test suites integrated into their pipelines. Teams releasing quarterly have more room for manual testing cycles but face higher risk per release since each deployment carries more changes.

4. Team size and skill set

A small team without dedicated QA engineers will prioritize differently than a team with a full testing department. Start with what your team can realistically build and maintain, then expand coverage as capacity grows.

The most practical starting point is to map your highest business risks to the testing types that address them directly. The table below provides a starting framework.

Start with the row that matches your biggest concern and build your testing strategy outward from there. No team needs to adopt every testing type on day one. The goal is to cover your highest-risk areas first, then layer additional types as the product and team mature.

How different testing types work together

Individual testing types are valuable on their own, but they deliver the most value when layered into a coordinated strategy. Each type catches a different class of defect at a different stage, and the gaps between them are where bugs survive long enough to reach production.

Before a product launch, performance tests simulate thousands of concurrent shoppers to verify that the platform holds up under load.

Testing in practice

Consider a team building an e-commerce platform. Here’s what a testing strategy might look like across the development lifecycle.

During development, developers write unit tests for individual functions like discount calculations and inventory lookups. After each build, smoke tests verify that the application launches and core pages load correctly.

When the payment service connects to the inventory and shipping modules, integration tests confirm that data flows correctly between them. In staging, system tests validate complete workflows like browsing, adding to cart, checking out, and receiving an order confirmation.

Before a product launch, performance tests simulate thousands of concurrent shoppers to verify that the platform holds up under load.

After every code merge, regression tests run automatically in the CI/CD pipeline to catch unintended side effects. And before go-live, stakeholders walk through user acceptance testing to confirm the experience matches business requirements.

No single testing type in that sequence would have been sufficient on its own. Each one covered a different risk at a different stage.

The testing pyramid

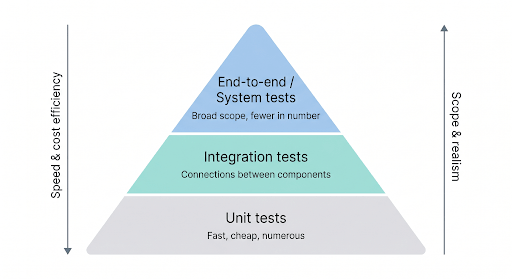

A common way to visualize this layering is the testing pyramid.

Unit tests form a wide base because they are fast, cheap, and numerous. Integration tests occupy the middle layer, covering the connections between components. End-to-end and system tests sit at the top, fewer in number but broader in scope.



This image was created by the author using Gemini

The pyramid shape reflects a practical reality that the lower a test sits in the stack, the faster and cheaper it is to run and maintain.

Teams that invert this pyramid by relying heavily on end-to-end tests while neglecting unit and integration coverage tend to end up with slow, fragile, and expensive test suites.

Each testing type exists because no single type can catch everything. Gaps in your testing strategy become gaps in your safety net, and those gaps tend to show up at the worst possible time.

The e-commerce illustration we covered earlier is a simplified scenario with a single team. In large organizations with a lot of teams, the challenge of coordinating testing types across different methodologies, tools, and pipelines gets harder by an order of magnitude.

The following example shows what that looks like in practice and how one organization addressed it.

Testing use case: testing at scale across multiple teams

Problem

Dell ISG’s Storage division had over 30 product teams building, testing, and delivering applications using different methodologies, pipelines, and toolsets.

Teams were using 20 different test case management systems, and terms like “performance testing” and “integration testing” meant different things across groups.

This fragmentation made it difficult to share test assets, move engineers between teams, or get a consistent view of quality across the organization.

Solution

Dell ISG selected Tricentis qTest to consolidate test management and orchestration into a single platform.

Regardless of whether a team used Scrum, Kanban, Waterfall, or SAFe, and regardless of their test automation framework, all tests could be managed and executed consistently through qTest.

Real-time execution results were made available in Jira, and requirement updates flowed automatically across tools.

Outcome

Dell ISG consolidated 20 separate test case management systems into one, enabling cross-team collaboration, test reuse, and engineering mobility across 30+ product teams.

Following the success in the Storage division, the initiative was expanded to the broader Dell ISG organization of approximately 15,000 people. The rollout was completed in six months.

The organization is also on the path to making Tricentis Tosca the recommended test automation option for all new teams and projects, with the goal of maximizing reuse through modular, resilient test automation.

Dell ISG’s experience shows what a well-layered testing strategy can accomplish with the right platform behind it. But building and maintaining those layers still demands time and expertise, especially at scale. Agentic AI is starting to change that equation.

Software engineering leaders are looking for new practices and approaches that their teams can adopt to mitigate risks to the business.

How agentic AI is changing software testing

Building and maintaining a layered testing strategy across functional, non-functional, and regression scenarios takes time and expertise. As test suites grow, so does the cost of creating new tests, keeping existing ones current, and deciding what to prioritize for each release.

Agentic AI changes this by enabling AI systems to create, execute, and maintain tests with minimal human intervention.

Teams describe what they need tested in natural language, and AI agents generate test cases, adapt them as the application changes, and optimize coverage based on risk and code changes.

Gartner highlights this shift in its report on building test automation capabilities in its 4 Essential Steps to Build Test Automation Capabilities:

“Software engineering leaders are looking for new practices and approaches that their teams can adopt to mitigate risks to the business. Test automation, increasingly powered and enhanced by generative AI technologies, becomes an indispensable building block to reap these benefits.”

Tricentis brings this to practice through its agentic testing capabilities across Tosca for test automation, qTest for test management, and NeoLoad for performance testing, connected through Model Context Protocol (MCP) servers that give AI agents the context to plan, execute, and optimize tests across the full stack.

Learn how Tricentis helps teams manage and scale different types of software testing with AI-driven, end-to-end testing solutions.

Conclusion

Choosing the right combination of testing types depends on your project’s risk, complexity, and release cadence.

Start with the types that cover your highest-risk areas, layer additional coverage as your product matures, and let AI-driven testing handle the speed and scale that manual approaches can’t sustain.
