SwiftUI DatePicker: A comprehensive tutorial with examples

Working with DatePickers in Swift has always been simple and straightforward. Despite the complexity that these elements contain behind the curtain, implementing the different representations of a DatePicker has always been manageable—albeit a bit limited, without resorting to some hacking.

SwiftUI is no different.

This article will briefly introduce you to the SwiftUI DatePicker. You’ll learn to customize and add functionality to DatePickers, and you’ll get a chance to perform some basic testing. By the end of this article, you’ll have a simple iOS project with the fundamentals already put into place. However, ensuring their performance and functionality can be challenging without the right tools. Tricentis Testim Mobile simplifies this process, allowing developers to efficiently test, customize, and validate DatePicker components in SwiftUI without complex coding.

For the purpose of brevity, I’m going to assume that you have experience working with Xcode 12 and Swift. But if you have no background in these tools, please take some time to explore them first here.

With the changes that the team at Cupertino have implemented in Xcode, a lot has changed in the workflow required to develop SwiftUI projects

Understanding SwiftUI’s workflow

With the changes that the team at Cupertino have implemented in Xcode, a lot has changed in the workflow required to develop SwiftUI projects. Yet, Xcode still feels very familiar. if you haven’t had the opportunity to work on a SwiftUI project before, I’d highly recommend that you get acquainted with it.

Nevertheless, I’ll give you a brief summary of what you’ll have in front of you when you create your first project.

First, your project currently has two files in it. There’s a ContentView.swift file and an <APP_NAME>App.swift file, where APP_NAME is the name you used for the project.

The class <APP_NAME>App.swift is the root application class; Don’t worry about it for now. ContentView.swift is where we’ll be working.

All SwiftUI View classes share the same structure. There’s a View struct defining the structure of the layout and functionality. There’s also a PreviewView struct serving as a helper for the emulator to display a preview of what you’re working with.

Now, you can see that in the ContentView struct, there’s a body variable of type View that defines the View. Therefore, any modification that you want to make to your View has to be done here.

As you’d see in all template code, the View contains a TextView object containing a “Hello World!” statement.

With all that established, we can start diving into the project.

Adding DatePickers with SwiftUI

Before you start adding your DatePicker element, let’s talk about State variables.

What’s a State variable?

In simple terms, it’s a variable (with the prefix @) that holds the “state” of the corresponding View. This way, the parent View and its hierarchy have some idea of the state of dynamic elements in the app. Otherwise, there’d be inconsistencies in the behavior of the app in terms of navigation.

So first, let’s add this variable to your code, like so:

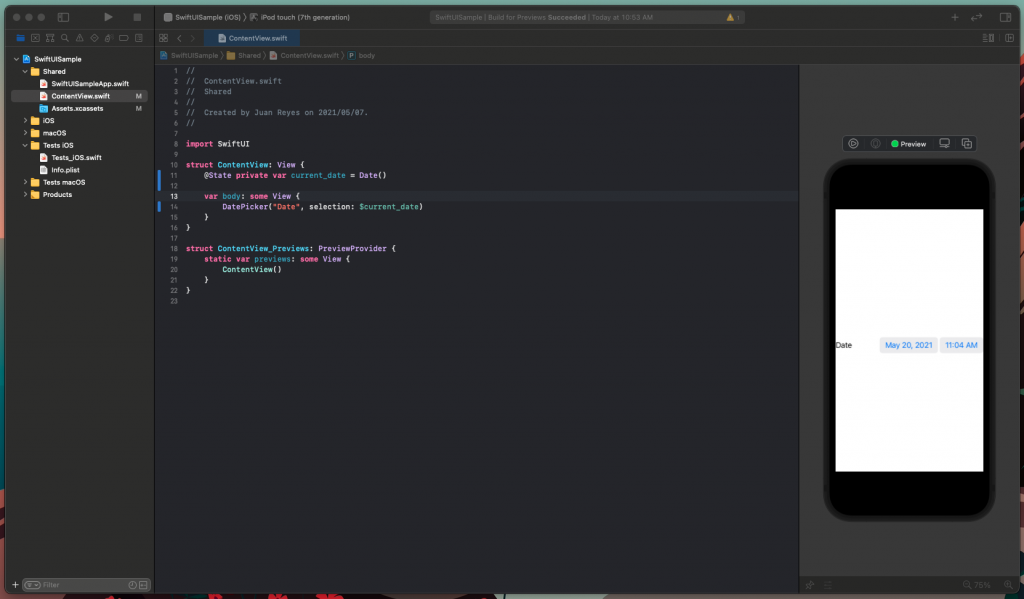

Great! Now, let’s remove that “Hello World!” and add your DatePicker.

import SwiftUI
struct ContentView: View {
    @State var current_date = Date()
    var body: some View {
        DatePicker("Date", selection: $current_date)
    }
}

You can test the DatePicker in the previewer by pressing the play button and interacting with it. Notice how it has all the expected functionalities right off the bat.

However, it doesn’t look very elegant all by itself. So let’s customize the appearance of your DatePicker.

Customizing your DatePicker appearance in SwiftUI

First, let’s add some padding to your View so it displays better on the screen.

import SwiftUI
struct ContentView: View {
    @State var current_date = Date()
    var body: some View {
        DatePicker("Date", selection: $current_date)
            .padding()
    }
}

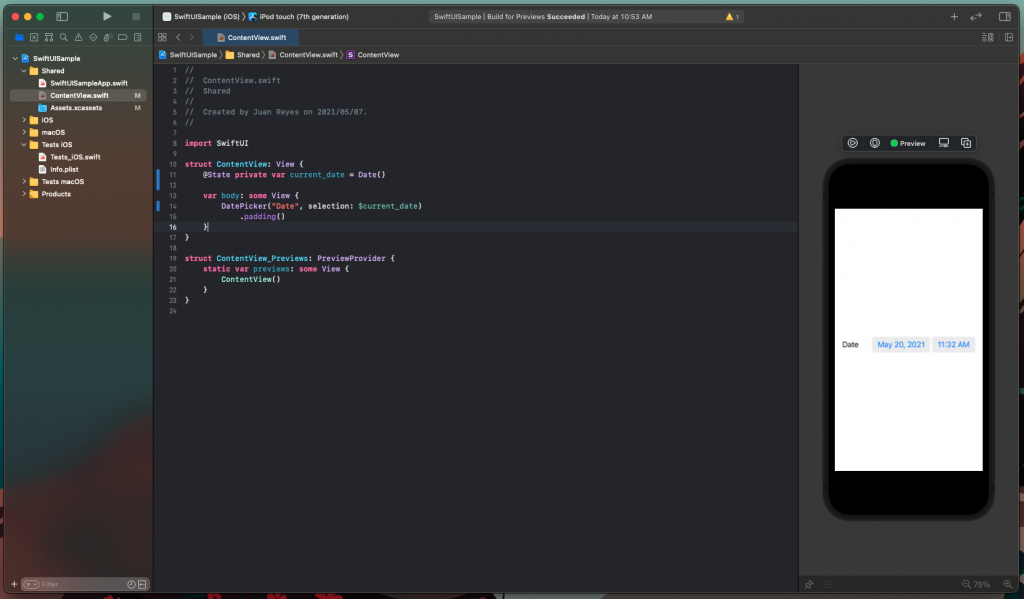

The result looks like this.

Note: If you’re confused about why adding .padding() to the element did the trick or what this clause is, I suggest you read a bit about SwiftUI modifiers.

Now, the most straightforward part of a DatePicker to customize is, of course, the inputs. As you might have noticed, your current DatePicker has a date and a time field.

What if you only need the date field?

No problem. The displayedComponents parameter allows you to control what fields to display by providing an array with the flags of the components to show. In this case, you want to show the date field. So just set it as follows.

import SwiftUI
struct ContentView: View {
    @State var current_date = Date()
    var body: some View {
        DatePicker("Date", selection: $current_date, displayedComponents: [.date])
                    .padding()
    }
}

Several representations are available for a DatePicker, depending on the target platform for your project. In this case, we’ll focus on the iOS ecosystem.

To modify the representation of the DatePicker, we’ll use a modifier called datePickerStyle. This modifier accepts three different values.

DefaultDatePickerStyle: This is the default style for the platform of development. In our case, this is equal to the CompactDatePickerStyle.
WheelDatePickerStyle: This is the most familiar wheel style.
GraphicalDatePickerStyle: This is the calendar view style.
CompactDatePickerStyle: This is the default compact style that iOS introduced recently.

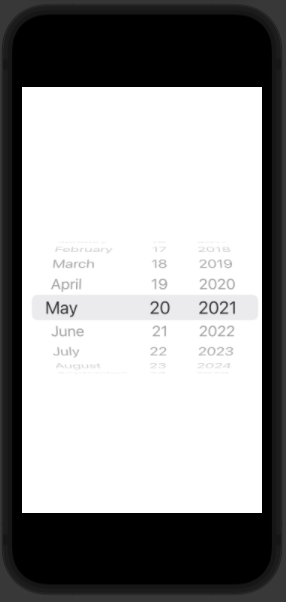

Here’s an example of the wheel style.

import SwiftUI
struct ContentView: View {
    @State var current_date = Date()
    var body: some View {
        DatePicker("Date", selection: $current_date, displayedComponents: [.date])
            .datePickerStyle(WheelDatePickerStyle())
            .padding()
    }
}

Feel free to try them all.

Finally, you can control the dates available to the user by introducing a range parameter to the constructor. To do this, you can initialize a range variable and pass it to the DatePicker constructor, like so:

import SwiftUI
struct ContentView: View {
    @State var current_date = Date()
    var limitRange: ClosedRange<Date> {
        let tenDaysAgo = Calendar.current.date(byAdding: .day, value: -10, to: Date())!
        let fiveDaysFromNow = Calendar.current.date(byAdding: .day, value: 5, to: Date())!
        return tenDaysAgo...fiveDaysFromNow
    }
    var body: some View {
        DatePicker("Date", selection: $current_date, in: limitRange, displayedComponents: [.date])
            .datePickerStyle(WheelDatePickerStyle())
            .padding()
    }
}

Next, let’s add some functionality to your DatePicker.

Adding functionality to your Datepicker

First, let’s remove the modifiers and embed your DatePicker in a form.

import SwiftUI
struct ContentView: View {
    @State var current_date = Date()
    var limitRange: ClosedRange<Date> {
        let tenDaysAgo = Calendar.current.date(byAdding: .day, value: -10, to: Date())!
        let fiveDaysFromNow = Calendar.current.date(byAdding: .day, value: 5, to: Date())!
        return tenDaysAgo...fiveDaysFromNow
    }
    var body: some View {
        Form {
            DatePicker("Date", selection: $current_date, in: limitRange, displayedComponents: [.date])
                  .datePickerStyle(WheelDatePickerStyle())
        }
    }
}

import SwiftUI
struct ContentView: View {
    @State var current_date = Date()
    var limitRange: ClosedRange<Date> {
        let tenDaysAgo = Calendar.current.date(byAdding: .day, value: -10, to: Date())!
        let fiveDaysFromNow = Calendar.current.date(byAdding: .day, value: 5, to: Date())!
        return tenDaysAgo...fiveDaysFromNow
    }
    var body: some View {
        Form {
            DatePicker("Date", selection: $current_date, in: limitRange, displayedComponents: [.date])
                  .datePickerStyle(WheelDatePickerStyle())

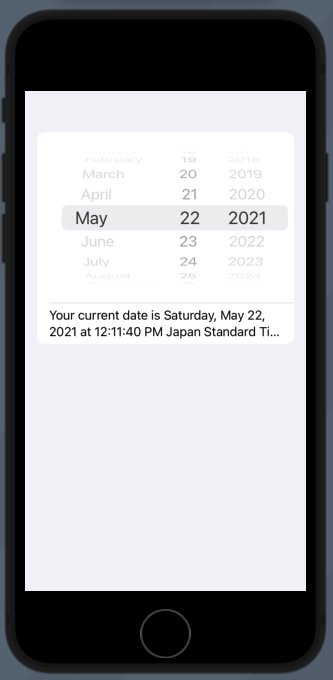

            Text("Your current date is \(current_date)")
        }
    }
}

func testExample() throws {
    // UI tests must launch the application that they test.
    let app = XCUIApplication()
    app.launch()
    let datepicker = app.datePickers.element(boundBy: 0)
    datepicker.pickerWheels.element(boundBy: 0).adjust(toPickerWheelValue: "May")
    datepicker.pickerWheels.element(boundBy: 1).adjust(toPickerWheelValue: "22")
    datepicker.pickerWheels.element(boundBy: 2).adjust(toPickerWheelValue: "2021")
    // Use recording to get started writing UI tests.
    // Use XCTAssert and related functions to verify your tests produce the correct results.
}
