Black box testing

What is black box testing?

Black box testing is a category of testing techniques that examine software applications from the outside, without any knowledge of the design or structure of a software system. Black box tests can happen at a variety of levels, from unit testing that examines the functionality of bits of code to integration testing, system testing, or acceptance testing. In a black box test, testers examine inputs and outputs to make sure an application operates as it’s supposed to, and to discover any errors that should be fixed.

Black box testing may reveal:

• Functions of the software that aren’t working properly
• Errors that occur when accessing databases
• Issues with performance, application behavior, or ability to scale
• Problems with the user interface
• Errors that happen as particular functions are starting or ending

Why people use black box testing

An advantage of black box testing is that the tester doesn’t need technical or coding know-how. Anyone can do it. Because they’re only looking at one thing (“if Y does X”), testers can find and report issues quickly. It’s the behavior testing of software.

White box testing techniques, on the other hand, are functional tests of the structure of the code. In white box testing, the tester is typically a software engineer and has knowledge of how the technology works—the internal structure or code. You could test an algorithm, for example, with white box testing. Whereas with black box tests, you can only test user functions.

Read more about the differences between white box and black box testing on geeksforgeeks.org.

Black box testing is used because anyone can check to see if a feature is functioning as intended. If the test fails, it’s up to the engineering team to explore what went wrong.

Popular black box testing techniques

Black box testing techniques can be functional or non-functional. Here are the typical black box testing techniques used.

1. Equivalence class partitioning: designed to reduce the total number of test cases to be developed (therefore reducing redundancies and time to test) by defining test cases that uncover classes of errors. It divides the input data of a software unit into partitions of equivalent data from which test cases can be derived.
2. Decision table testing: a visual matrix depicting different sets of input combinations and their expected outcome on each row. They test an application’s behavior based on specific inputs.
3. Cause-effects graphs: graphically illustrates the relationship between effects and causes, identifying all the factors that influence the particular outcome.
4. Boundary value analysis: the most commonly used black box testing technique. A form of functional testing focused on determining and testing at chosen boundaries for input values. Boundary values include just inside/outside of the boundaries, typical values, error values, maximum, and minimum.
5. Error guessing: the software tester uses their past experience to determine where errors in the software may be. Test cases are then designed to find those errors and any lingering bugs.

Benefits and limitations of black box testing

Benefits of black box testing

• Objectivity. In a black box test, the tester is completely separated from the developer who created the code, providing critical distance and ensuring that testers use and test the application in ways the developers had not considered.
• User-focused. Testing teams must view the software from the perspective of an actual user, ensuring that the software is more responsive to the needs of users.
• End-to-end testing. Because a black box test looks at all relevant aspects of a software system from a user’s perspective, tests are better able to determine the end-to-end functionality of elements such as databases, dependencies, user interface, user experience, web servers, application servers, and integrated systems.
• No technical knowledge required. Black box testers don’t need specific technical knowledge, programming skills, or IT backgrounds. For this reason, tests can be easily outsourced or crowdsourced.

Limitations of black box testing

• Test coverage. It’s impossible for black box testers to completely test everything in large and complex projects. In contrast, white box testing allows testing teams to focus their limited time and resources on areas that are most likely to have issues.
• Overlapping effort. A black box approach may repeat tests that have already been performed by developers.
• Challenges designing test cases. With limited testing time, it’s harder for testers to identify all potential inputs, making it more difficult and time-consuming to write test cases.

Black Box vs. White Box Testing

How does black box testing compare to white box testing? In black box testing, we don’t make any assumptions about the inner workings of the system we’re testing. Whereas in white box testing, we test the internal control flow of the target of our tests. In the case of software, this means the tester can look at the code and design tests based on the possible code paths they see. The test can also verify that certain side effects occurred when executing the test.

By looking at the inner workings of the code, white box tests can discover specific edge cases. But a tester might also miss potential test cases that weren’t apparent by looking at the code, but that were part of the requirements. By focusing only on the implementation, we might be “tricked” into thinking this is the correct implementation and design our tests according to the code we see, instead of the specifications that were requested.

What Is Gray Box Testing?

It should be clear now that both methodologies have advantages and disadvantages. That’s why a software development team doesn’t have to choose one or the other. Most teams use a combination of both. This is called gray box testing. It gives testers all necessary information to come up with the most complete test suite possible.

Types of tests and techniques

Types of black box testing

• Functional testing is done when we test our system for the functionalities that we implemented. This is usually at a higher level, like user interface testing, end-to-end testing, smoke testing, or user acceptance testing. But we can also test the implemented functionalities of our software during integration testing or unit testing.

  When we do so, we can test the system without knowing the inner workings. We can start entirely from the requirements and specifications. We can use these to identify test cases, execute these cases, and verify the results. That’s what makes these tests black box tests.

  Often, we will repeat these tests long after the features have been implemented and released. The tests are then part of our regression testing, ensuring features keep working as intended and don’t break because of new changes.

• In non-functional testing, we test parts of our application that don’t really have a functional impact on our users. If the tests fail, the software may still be able to solve the user’s problems. But maybe it won’t work as well as it could usually work. Examples of non-functional testing are usability testing, load testing, performance testing, scalability testing, security checks, and crash recovery testing.

  Non-functional tests are mostly black box tests. These type of tests don’t concern themselves with the specific implementation of the software, but rather they check for certain issues that the system as a whole has.

• Regression testing examines an application to see whether changes, updates, or upgrades have altered the existing functional and non-functional capabilities of the software.

Black box techniques

• Equivalence class partitioning divides input values into different classes or groups based on the similarity of outcomes. This technique helps to improve test coverage while reducing rework and time spent.
• Boundary value testing looks for errors in input values that may range from both ends of a boundary, where applications typically have more issues.
• State transition testing is a technique that examines the performance of the system under different or changing states.
• All-pairs testing combines pairs of data input to look for bugs and parameters.
• Decision table testing uses different input combinations to examine the behavior of the system, capturing data in a table.

How black box testing is performed

Steps involved in a black box test include:

• Determining requirements. Identify the system requirements and specifications to determine what elements can be tested.
• Planning tests. Determine what kinds of tests will reveal how well the software meets requirements, and decide how success will be measured.
• Analyzing test conditions. Specify the ideal conditions for each test.
• Designing formal rules. Identify the rules for each test.
• Creating test cases. Develop test cases to cover a maximum range of inputs.
• Executing tests. Run tests and log results and defects.
• Reporting results. Produce formal reports to complete the testing cycle.

Tools used in black box testing

We mentioned that black box testing is ideal for higher-level tests like UI testing and end-to-end testing. Of course, we can perform these tests manually by using our application, but that doesn’t scale well. So which testing tools can help us more easily create black box tests?

A tool that implements the Gherkin language (like CucumberJS or SpecFlow) makes it easy to write up tests without the need to know a programming language. It forms an abstraction over code that automates the application. Although we can also write white box tests with the Gherkin language, it’s ideal for higher-level black box tests.

Another type of tool is a record and playback tool. Tools like Selenium, Appium, and Waldo allow testers to use an application and record the steps they went through. Later, the tool can run through these steps again and perform any verifications the tester specified. There is no need to know anything about how the features were implemented.

Because black box testing can be used at all levels of software testing, we can also design these tests with unit testing libraries.

Black box testing techniques and examples

Let’s look at some specific black box testing techniques.

Equivalence Partitioning

Using equivalence partitioning, we design test cases by creating “partitions” (or equivalence classes) of test cases where all inputs in a certain partition can be regarded as equivalent. Take a function that receives a birthdate as input and verifies that this date makes the user 18 years or older. Basically, this function has two partitions that can be used for its tests. First, a date range that should return false because the user is younger than 18, and a date range the should return true because the user is 18 or older.

Instead of executing hundreds of tests for different inputs, we can basically reduce it to two test cases. Optionally, we could identify a third partition if we regard the cases where someone is exactly 18 years old as a special case.

Equivalence partitioning is a black box testing method because we only look at the specifications to design our tests.

Boundary Value Analysis

Boundary value analysis builds on the equivalence partitioning technique. With this technique, we take input values at the boundaries of our partitions. In the above example, we would take dates that make the user one day younger than 18 years old, exactly 18 years old, and one day older than 18 years old.

Again, no knowledge of the code is required, only knowledge of the functional requirements.

Decision Table Testing

Decision tables are a useful way of visually representing the different inputs and expected outputs of a system. Each line in the table represents a test case. This is useful for more complex test cases with many variables.

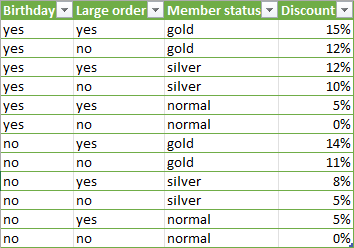

Take a look at this table:

It contains the data for a discount calculation routine. The decision table is much clearer than summing this up in a long specification text. Both developers and testers can use it to implement and test the system. The tester can identify the necessary test cases without looking at the implementation.

State Transition Testing

State transition testing is a technique that’s ideal for systems that transfer from one state to another. As an example, think about a system that processes videos. The system is designed in such a way that it can be “idle,” “processing,” or “paused”. When the system receives a video, it’ll move from “idle” to “processing.” If it receives a file it can’t handle, it’ll do nothing and remain “idle.” And finally, a user should be able to pause and resume the video processing.

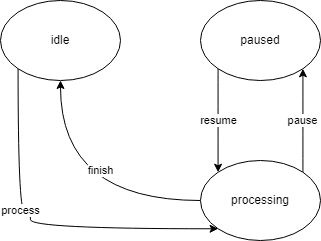

We can graphically clarify this with a state diagram:

This diagram clearly shows us the different transitions from one state to another, and it can help identify test cases for our tests. The tests that we design based on this diagram won’t be complete, of course. We will still want to verify the outcome of the video processing. But the state transition technique gives us a visual representation of the system, making it easier to discover new test cases.

Error Guessing

In this technique, the tester tries to find bugs by “guessing” which conditions or actions may lead to issues with the software application. A good tester has enough experience to know the type of actions and inputs that typically lead to errors in software. Often, these are cases that developers didn’t think about. Things like using special characters in inputs, large files for file processing, and double clicking buttons to trigger back-end logic twice.

Black box testing in review

Black box testing is a technique of testing where we test our system without looking at the inner implementation details. It differs from white box testing, where we look at the implementation to identify new test cases. It’s a form of behavioral testing because we verify the external behavior of the system. Most teams use a combination of both, i.e. gray box testing.

To discover new test cases, we can use techniques like equivalence partitioning, boundary value analysis, decision tables, state transition diagrams, and error guessing. These techniques don’t require testers to look at the implementation, and as such, don’t require technical knowledge.

Black box testing is ideal for both functional and non-functional testing. It can cover all the way from user acceptance testing and UI tests to performance and security testing. We can even apply the black box testing technique to lower level tests like integration and unit tests.
